Architecture

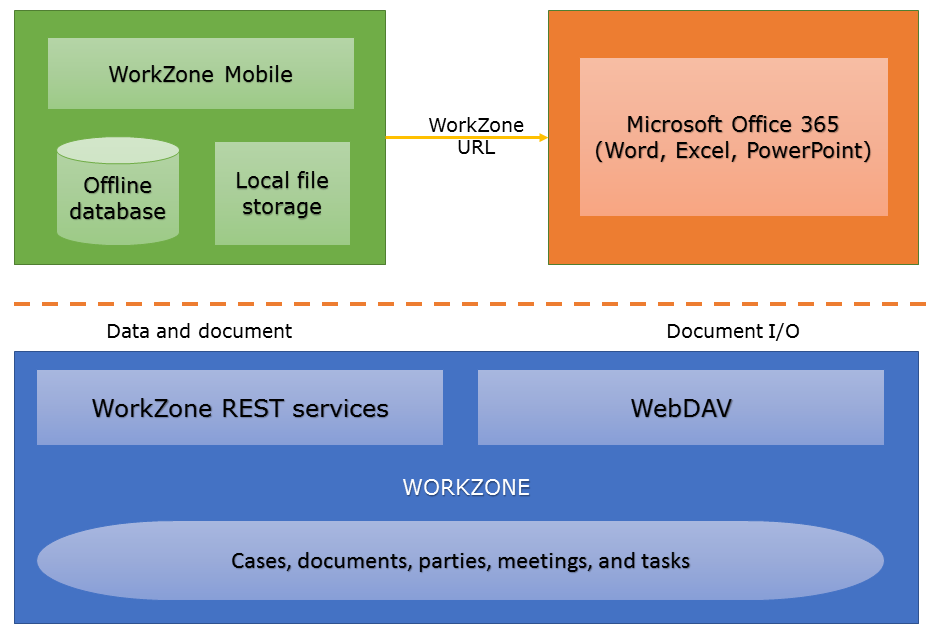

The drawing below illustrates how WorkZone Mobile (Ny) interacts with WorkZone and Microsoft Office 365.

• WorkZone is the back-end case and document management system. WorkZone stores and manages data on cases, documents, parties, meetings, and tasks. The data is exposed through standard REST services and WebDAV.
• WorkZone Mobile (Ny) is a client. It fetches data through the WorkZone REST services and stores current tasks locally on the device for improved performance and offline scenarios. Data and documents that are no longer relevant are removed automatically from the app storage.
