Contact synchronization

WorkZone offers a series of modules that manage automatic import and update of CPR (person) or CVR (company) contact data into WorkZone. For information about contact synchronization, see Contact lookup and synchronization (CPR and CVR).

This page describes the configuration that is needed to deploy containers that are required to run the contact synchronization modules.

Container deployment

In addition to the WorkZone values in the values.yaml (See Prepare environment files for WorkZone container installation), you need to prepare the values that are specific to contact synchronization containers.

Sample values.yaml

wzlogic:
    auth:
        wzuser: CONTACTSYNCUSER
        oid: <customer specific oid> ##Enterprise OID
    oauth2:
        clientId: ContactSyncService
    contactlookupservice:
        url: http://wzlogic-contactlookupservice/
        latestApiUrl: http://wzlogic-contactlookupservice/api/v1/ContactLookup
    contactsyncconfigservice:
        url: http://wzlogic-contactsyncconfigservice/
        latestApiUrl: http://wzlogic-contactsyncconfigservice/api/v1/ContactSyncConfiguration
    cprsubscriptionservice:
        url: http://wzlogic-cprsubscriptionservice/
        schedule: "0 4 * * 1-5"
    cprupdateservice:
        url: http://wzlogic-cprupdateservice/
    subscriptionservice:
        url: http://wzlogic-subscriptionservice/
        schedule: "0 4 * * 1-5"
    updateservice:
        url: http://wzlogic-updateservice/
    datafordeler:
        CprBaseUri: https://s5-certservices.datafordeler.dk/
        CvrBaseUri: https://s5-certservices.datafordeler.dk/
        BfeBaseUri: https://certservices.datafordeler.dk/
        EventsBaseUri: https://s5-certservices.datafordeler.dk/
	    CprGraphQLUri: https://graphql.datafordeler.dk/CPR
	    CvrGraphQLUri: https://graphql.datafordeler.dk/flexibleCurrent/v1

You can configure the values of the cprsubscriptionservice and the updateservice variables. The remaining variables in the values.yaml file are global values and should not be changed.

The environment.yaml file contains specifc Datafordeler.

Sample environment.yaml

wzlogic:
      datafordeler:
        CprBaseUri: https://test04-s5-certservices.datafordeler.dk/
        CvrBaseUri: https://test03-s5-certservices.datafordeler.dk/
        EventsBaseUri: https://test03-s5-certservices.datafordeler.dk/
        CprGraphQLUri: https://test04-graphql.datafordeler.dk/CPR
        CvrGraphQLUri: https://test06-graphql.datafordeler.dk/flexibleCurrent/v1

Variable	Description	Value
cprsubscriptionservice	A service that checks Datafordeler for updated information on CPR contacts. You can configure the schedule for when the service should check for updates. If you want to change the default value, we recommend decreasing the frequency.	The default value is: url: http://wzlogic-cprsubscriptionservice/ schedule: "0 4 * * 1-5 which is 4 AM UTC, Monday to Friday.
subscriptionservice	A service that checks Datafordeler for updated information on CVR contacts. You can configure the schedule for when the service should check for updates. If you want to change the default value, we recommend decreasing the frequency.	The default value is: url: http://wzlogic-subscriptionservice/ schedule: "0 4 * * 1-5 which is 4 AM UTC, Monday to Friday.

Variable

Description

Value

cprsubscriptionservice

A service that checks Datafordeler for updated information on CPR contacts.

You can configure the schedule for when the service should check for updates.

If you want to change the default value, we recommend decreasing the frequency.

The default value is:

url: http://wzlogic-cprsubscriptionservice/ schedule: "0 4 * * 1-5

which is 4 AM UTC, Monday to Friday.

subscriptionservice

A service that checks Datafordeler for updated information on CVR contacts.

You can configure the schedule for when the service should check for updates.

If you want to change the default value, we recommend decreasing the frequency.

The default value is:

url: http://wzlogic-subscriptionservice/ schedule: "0 4 * * 1-5

which is 4 AM UTC, Monday to Friday.

The table below provides an overview of the of the global variables. Leave these variables as is.

Variable	Description	Value
contactlookupservice	A service that looks up contacts in Datafordeler.	http://wzlogic-contactlookupservice/
contactsyncconfigservice	A service that provides the configuration API for contact synchronizations services, such as CPR/CVR lookup and update.	url: http://wzlogic-contactsyncconfigservice/
cprupdateservice	A service that synchronizes CPR contact changes in Datafordeler withWorkZone.	url: http://wzlogic-cprupdateservice/
updateservice	A service that synchronizes CVR contact changes in Datafordeler with WorkZone.	url: http://wzlogic-updateservice/
datafordeler	Base URIs to the Datafordeler service.	CprBaseUri: https://s5-certservices.datafordeler.dk/ CvrBaseUri: https://s5-certservices.datafordeler.dk/

Secrets

This section describes how to generate the secrets that are required to deploy the contact synchronization containers.

Encryption secrets

There are two secrets that are used to encrypt and decrypt the passwords to the certificates that are used to communicate with Datafordeler.

Bemærk: You must set the parameters as is, but you can adjust the output paths to the machine where deployer generates them.

Use the Windows and Linux built-in tool ssh-keygen to generate the two secrets.

Private:

ssh-keygen -b 2048 -m pkcs8 -t rsa -f /var/prvkey

Public:

ssh-keygen -f /var/prvkey -e -m pem >> /var/pubkey

Add the values (secrets) to the keys:

WORKZONE-CONTACTSYNCCONFIG-DECRYPTION-KEY

The value is the private secret that was generated above.
WORKZONE-CONTACTSYNCCONFIG-ENCRYPTION-KEY

The value is the public secret that was generated above.

Bemærk: Remove headers and line breaks before you add the values to Key Vault.

Example:

Key: WORKZONE-CONTACTSYNCCONFIG-DECRYPTION-KEY

Value: MIIJQwIBADANBgkqhkiG9w0BAQEFAA(...) #truncated, must be one line, no line breaks.

Key: WORKZONE-CONTACTSYNCCONFIG-ENCRYPTION-KEY

Value: MIICCgKCAgEAjEErCcSmqYDaSlD70/(...) #truncated, must be one line, no line breaks.

CONTACTSYNCUSER service user secrets

The secrets below are required to get the Entra ID access token for the CONTACTSYNCUSER service user.

The secrets are available in the secret store as part of the WorkZone common secrets.


```yaml
  - name: WORKZONE_OAuth2__TenantId
    valueFrom:
      secretKeyRef:
        key: WORKZONE_AZURE_SYS_TENANTID
        name: wzcommon-secrets
  - name: WORKZONE_OAuth2__ClientId
    valueFrom:
      secretKeyRef:
        key: WORKZONE_AZURE_SYS_CONTACTSYNCUSER_CLIENTID
        name: wzcommon-secrets
  - name: WORKZONE_OAuth2__ClientSecret
    valueFrom:
      secretKeyRef:
        key: WORKZONE_AZURE_SYS_CONTACTSYNCUSER_CLIENTSECRET
        name: wzcommon-secrets
```

Installing the contact synchronization containers using werf

If you're not maintaining the common Key Vault used for storing common secrets, you can use the existing Key Vault instead. In that case, set the value of commonsecrets to false in the global environment YAML file, as shown below:

# Enable only if secret wzcommon-secrets is present
  commonsecrets:
   enabled: false

Create the app registration

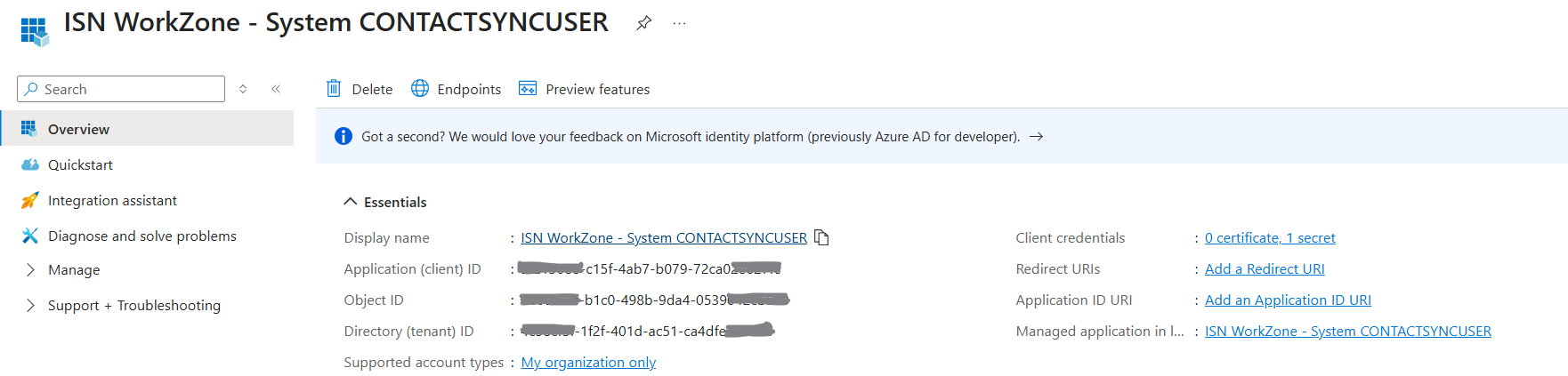

In the tenant, go to App registrations and create a new app registration.

Example:
Add the secrets listed below to the Key Vault and assign each secret the corresponding values from the app registration.
- WORKZONE-AZURE-SYS-TENANTID

  The system tenant ID where the app registration is configured.
- WORKZONE-AZURE-SYS-CONTACTSYNCUSER-CLIENTID

  The application (client) ID of the app registration.
- WORKZONE-AZURE-SYS-CONTACTSYNCUSER-CLIENTSECRET

  The client secret of the app registration.

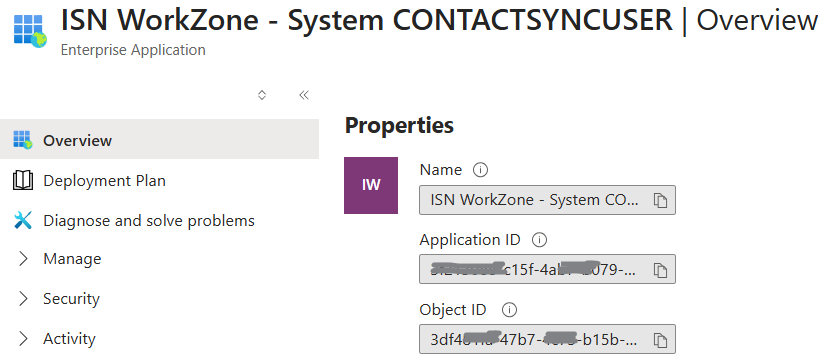

Get the Enterprise Application Object ID for CONTACTSYNCUSER and pass it to the value file.
```
auth:
 wzuser: CONTACTSYNCUSER
 oid: < 3df4…> # provide the Object ID here
```

Configure the values.yaml file

Copy the Sample values.yaml above, and make changes to it as needed, for example change the schedules.
Paste your changes in to the global values.yaml file.

See Preparing container installation and Installing the WorkZone containers using a master Helm chart.
