Retrieve data from the map module
Once a selection has been made in the map module, we will be able to read out additional parameters from this module. These additional parameters contain information that may be useful in a dialogue, and can be posted to text fields.
To use these data in text fields, you have to enter the correct tag in the value formula field of a text field:
= GeodataKart["data"]["value tag"]

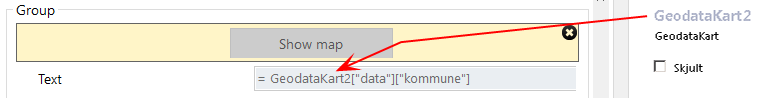

Where Geodatakart is the variable name of the map module you want data from. In the example below, the correct would be GeodataKart2:
Data is a fixed value that should not be changed in the formula.
Value tag is the data you want to retrieve, such as gardsnr. See tables below for all data that can be retrieved.
Note! Keep track of the variable name for GeodataKart. If you have more than one map module in a dialogue, each module will automatically get a serial number. Then you quickly find yourself in situations where the variable you want to retrieve data from is called e.g. GeodataMap3.
Different parameters that can be retrieved from the dialogue
Parameters are used in the formula = GeodataKart["data"]["value tag"], where GeodataKart must be the variable of the map module, and value tag is the parameter to extract. The following value tags can be retrieved from the Map module.
Draw in map (point / line / area)
| Value tag | Description |
|---|---|
| adresseid | Provides a numeric ID of the address |
| address | Provides the street address |
| postnummer | Provides postal code |
| poststed | Provides city |
| municipality name | Provides name of kommune (muncipality) |
| kommunenr | Provides kommunenummer of 4 digits (muncipality number) |
| gardsnr | Provides gårdsnummer |
| bruksnr | Provides bruksnummer |
| festenr | Provides festenummer if available |
| seksjonsnr | Provides section number for the unit |
| matrikkelenhetid | Provides matrikkelenhetid |
| fylkesnavn | Gives the name of the county |
| layer | Provides name to type of unit (property, address, etc.) |
Choose property
| Value tag | Description |
|---|---|
| fylke | Gives the name of the county |
| kommune | Provides name of kommune (muncipality) |
| kommunenr | Provides kommunenummer of 4 digits (muncipality number) |
| gardsnr | Provides gårdsnummer |
| bruksnr | Provides bruksnummer |
| festenr | Provides festenummer if available |
| seksjonsnr | Provides section number for the unit |
| adresse | Provides the street address |
| postnummer | Provides postal code |
| poststed | Provides city |
| areal | Provides the plot area |
| matrikkelenhetid | Provides matrikkelenhetid |
| layer | Provides name to type of unit (property, address, etc.) |
At the next level in the data structure, you can retrieve the following values by typing the following in the value formula field:
= GeodataKart["data"]["bruksenheter"]["value tag"]
| Value tag | Description |
|---|---|
| bruksenhetsnr | Provides bruksnummer |
| bruksenhetsid | Provides ID for utility unit |
| byggid | Provides byggid |
| bygningsnr | Provides a unique number for the building |
| etasjenr | Gives the number of the floor |
| lopenr | Provides a serial number |
| etasjeplankode | Provides a floor plan code |
Velg bygning
| Value tag | Description |
|---|---|
| fylke | Provides name of fylke (state) |
| kommune | Provides name of kommune (muncipality) |
| kommunenr | Provides kommunenummer of 4 digits (muncipality number) |
| antalletasjer | Provides number of floors in building |
| bebygdareal | Provides built-up area in sqm |
| antallboenheter | Provides the number of housing units in a building |
| bygningstype | Provides building type |
| naringsgruppe | Provides industry group |
| bygningsnr | Provides building number |
| layer | Provides name to type of unit (property, address, etc.) |
At the next level in the data structure, you can retrieve the following values by typing the following in the value formula field:
= GeodataKart["data"]["bruksenheter"]["value tag"]
| Value tag | Description |
|---|---|
| gardsnr | Provides gårdsnummer |
| bruksnr | Provides bruksnummer |
| festenr | Provides festenummer |
| seksjonsnr | Provides the section number |
| bruksenhetsnr | Provides bruksnummer |
| bruksenhetsid | Provides ID for utility unit |
| byggid | Provides byggid |
| bygningsnr | Provides a unique number for the building |
| etasjenr | Gives the number of the floor |
| lopenr | Provides a serial number |
| etasjeplankode | Provides a floor plan code |
| address | Provides the street address |
| postal code | Provides postal code |
| poststed | Provides city |
| matrikkelenhetid | Provides the ID of the unit in the matrikkel |
Choose address
| Value tag | Description |
|---|---|
| fylke | Provides name of fylke (state) |
| kommune | Provides name of kommune (muncipality) |
| kommunenr | Provides kommunenummer of 4 digits (muncipality number) |
| adresseid | Provides address ID |
| adresse | Provides street name |
| postnummer | Provides postal code |
| poststed | Provides city |
| layer | Provides name to type of unit (property, address, etc.) |
At the next level in the data structure, you can retrieve the following values by typing the following in the value formula field:
= GeodataKart["data"]["bruksenheter"]["value tag"]
| Value tag | Description |
|---|---|
| gardsnr | Provides gårdsnummer |
| bruksnr | Provides bruksnummer |
| festenr | Provides festenummer |
| seksjonsnr | Provides the section number |
| bruksenhetsnr | Provides bruksnummer |
| bruksenhetsid | Provides ID for utility unit |
| byggid | Provides byggid |
| bygningsnr | Provides a unique number for the building |
| etasjenr | Gives the number of the floor |
| lopenr | Provides a serial number |
| etasjeplankode | Provides a floor plan code |
| matrikkelenhetid | Provides the ID of the unit in the matrikkel |
Chose postal zone
| Value tag | Description |
|---|---|
| postnummer | Provides postal code |
| poststed | Provides city |
| layer | Provides name to type of unit (property, address, etc.) |
